Yanhua ACDP module 46 - Mercedes-Benz VGS4.0 NAG2 FBS4 is intended for professional work on the 46 - Mercedes-Benz VGS4.0 NAG2 FBS4 configuration. Car Diag Croatia, an authorised Yanhua distributor, helps verify the required function, matching adapter and software licence before ordering.
Module function：
Supports MB VGS4-0-NAG2(4-4) TCU virginizing and personalizing data transfer, thus enabling the TCU replacement.
Module Features：
Integrates the functions of reading coding , virginizing/transferring data, programming, and writing coding. No need to use any third-party devices to program and code.The TCU after data transfer can be directly installed and working.

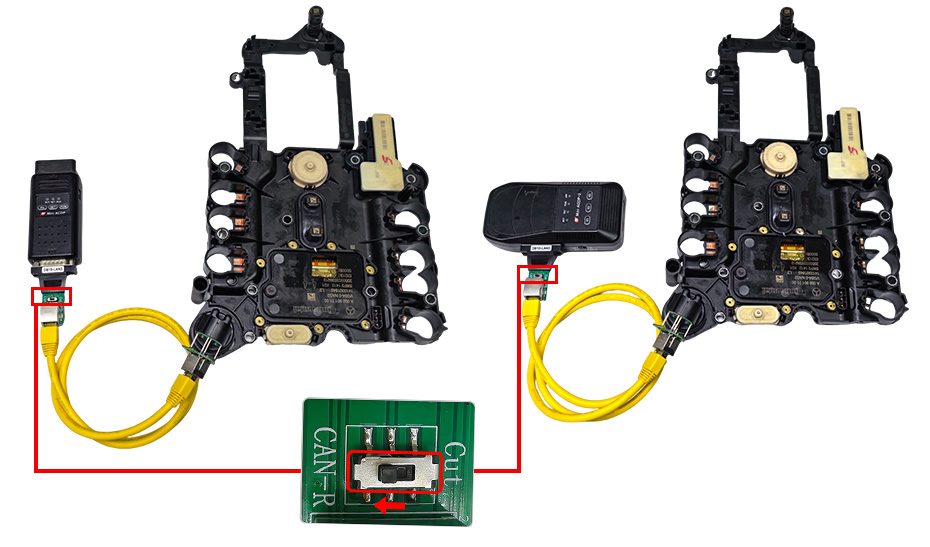

Module46 Overall connection diagram：

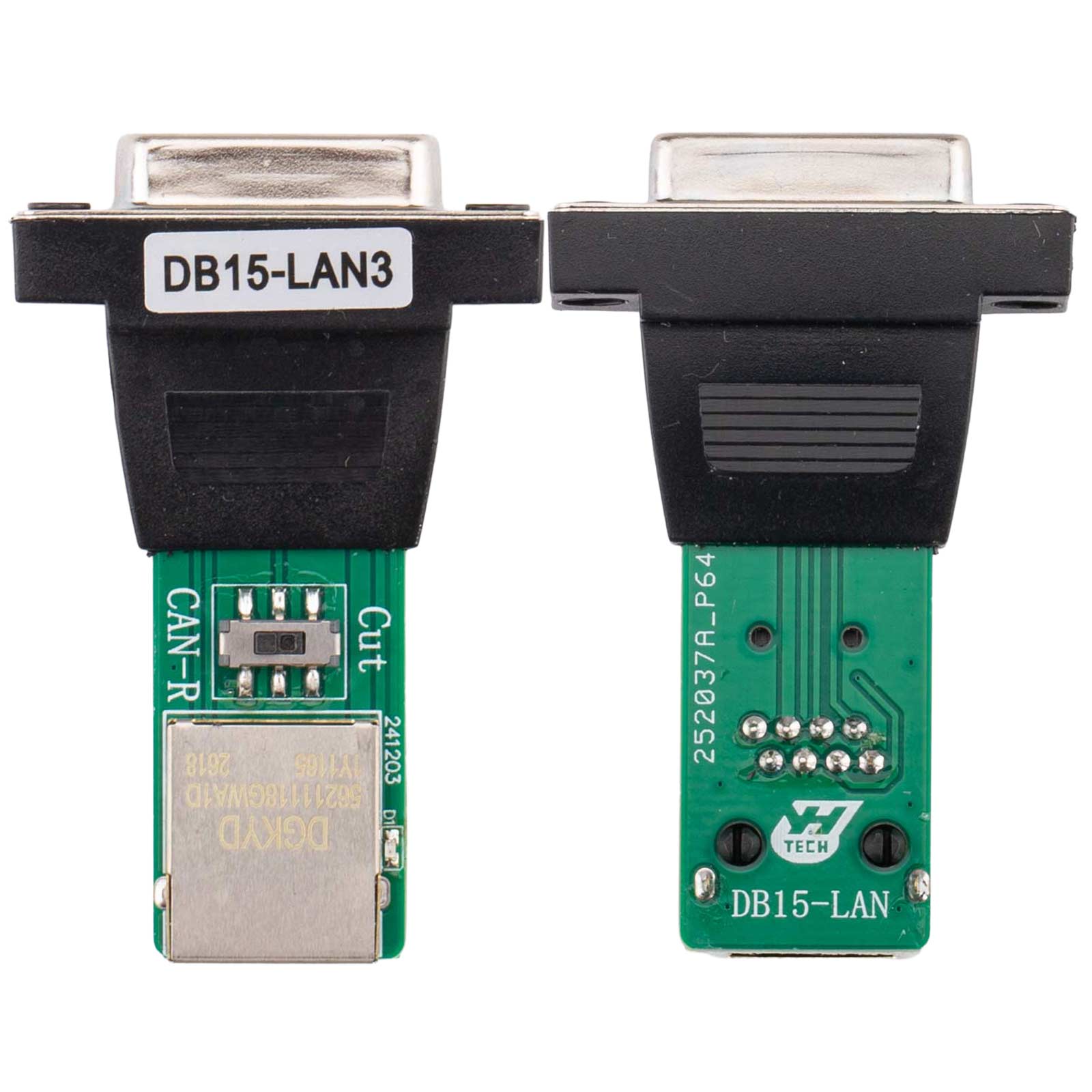

Short the junmper cap to the “CAN-R ” port accordingto the marked position
Module Description：
For customers who have already purchased ACDP Module 16, its only necessary to buy the license for Module 46 !
Short the junmper cap to the “CAN-R ” port accordingto the marked position
Short the junmper cap to the “CAN-R-Join“ port according to the marked position
APP operation interface：

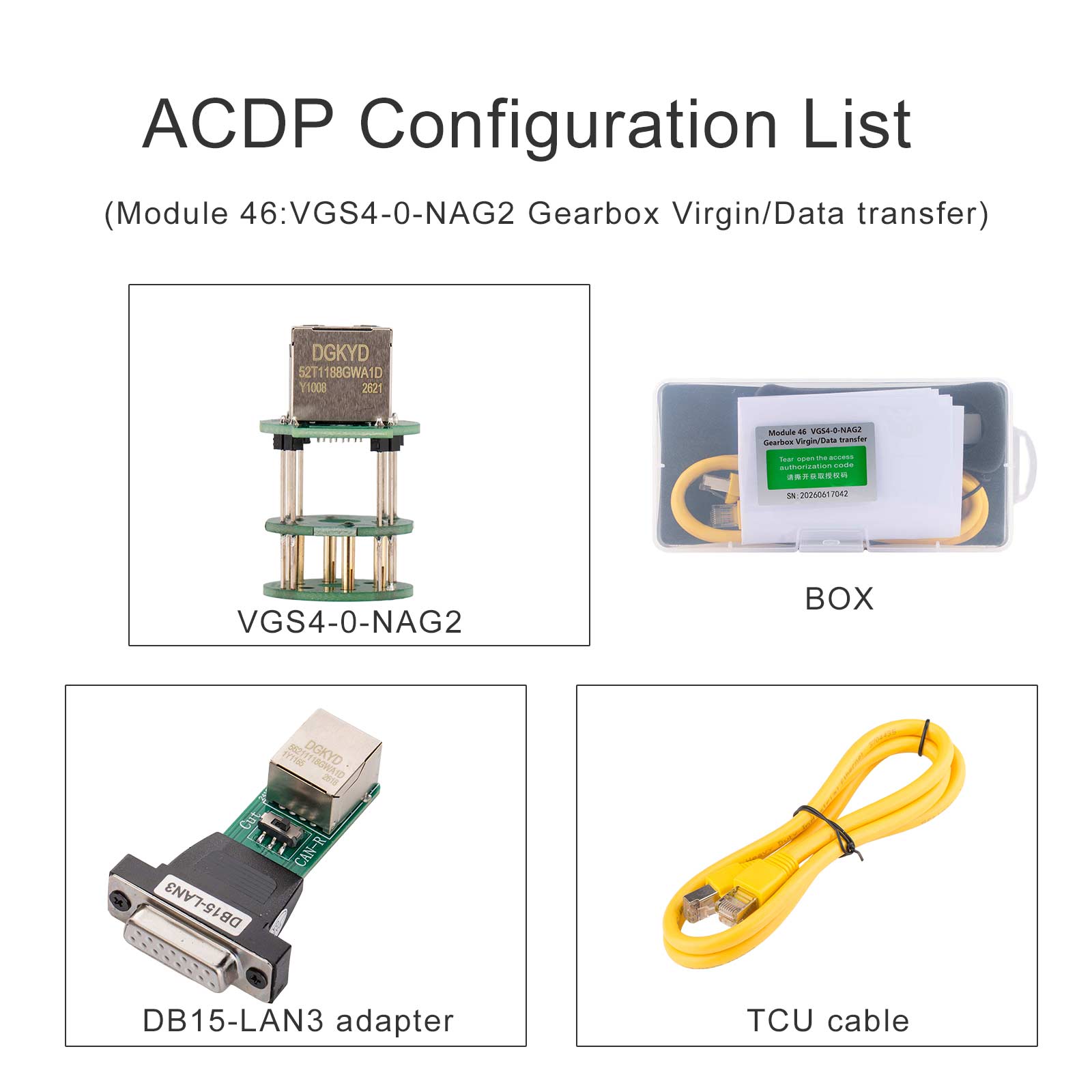

Configuration List:
What does this mean in the workshop?
Module 46 supports replacement of VGS4-0-NAG2 (4-4) through preparation and personalisation-data transfer. A separate licence is available for Module 16 owners, subject to checking their existing adapters.
Data transfer is useful when replacing a supported controller. It does not repair a hardware fault or make different hardware versions interchangeable. Compare both controller identifiers and retain the original backup before service work.
Application scope
- Data reading and transfer when replacing a compatible controller.
- Preparation of a supported module for vehicle readaptation.
Technical overview
| Offer type | module |
|---|---|
| System / configuration | 46 - Mercedes-Benz VGS4.0 NAG2 FBS4 |
| ACDP platform | Verify adapter version and device serial number |
| Systems listed in documentation | Mercedes-Benz VGS4-0-NAG2 (4-4) |
| Vehicle brands | Mercedes-Benz |
| Modules in this configuration | 46 |
| Licence identifiers in this configuration | A107 |
Before ordering
This is an ACDP expansion, not the base programmer. Operation requires a compatible host, the appropriate interface and an activated licence for the selected function. We check your existing equipment and the additions required before ordering.
Compatibility review
Send the vehicle model and year, ECU, TCU or IMMO identifier, required function and the serial number of your existing ACDP unit. Support depends on the specific controller, hardware and activated authorisations; the vehicle brand alone does not establish compatibility.
Request a quotation and compatibility check
Official Yanhua resources
For qualified professionals working with the vehicle owner’s authorisation. Retain original data and a service record. Work on security and memory systems should follow the official documentation for the exact controller.
