Yanhua ACDP module 20 - Volvo CEM is intended for professional work on the 20 - Volvo CEM configuration. Car Diag Croatia, an authorised Yanhua distributor, helps verify the required function, matching adapter and software licence before ordering.
Module Features:
1：Reading CEM data in ICP mode without soldering.
2：Programming new kyes via OBD mode.
Module features：
Programming process,No need remove any components of PCB,No soldering,No damage ,No scratch.

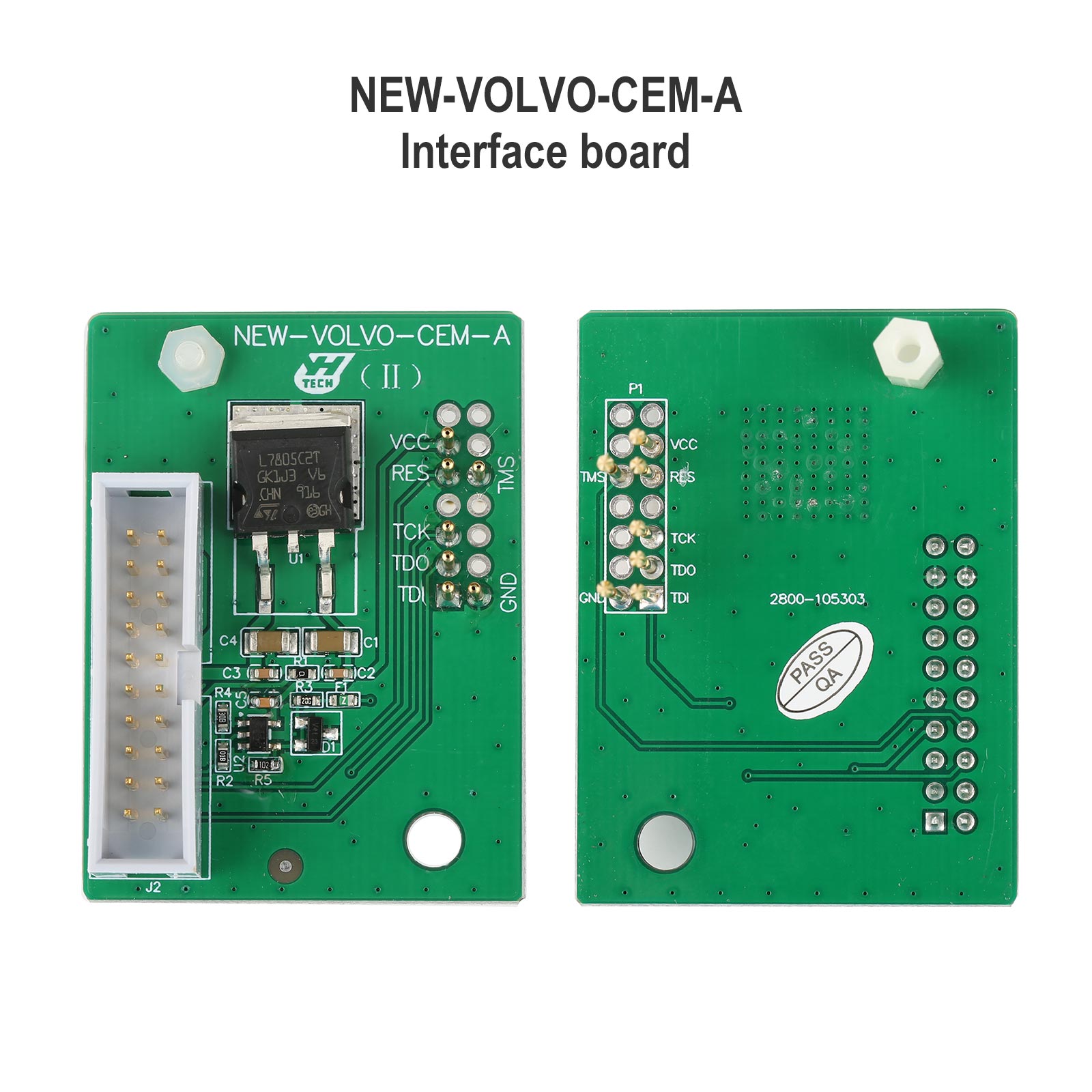

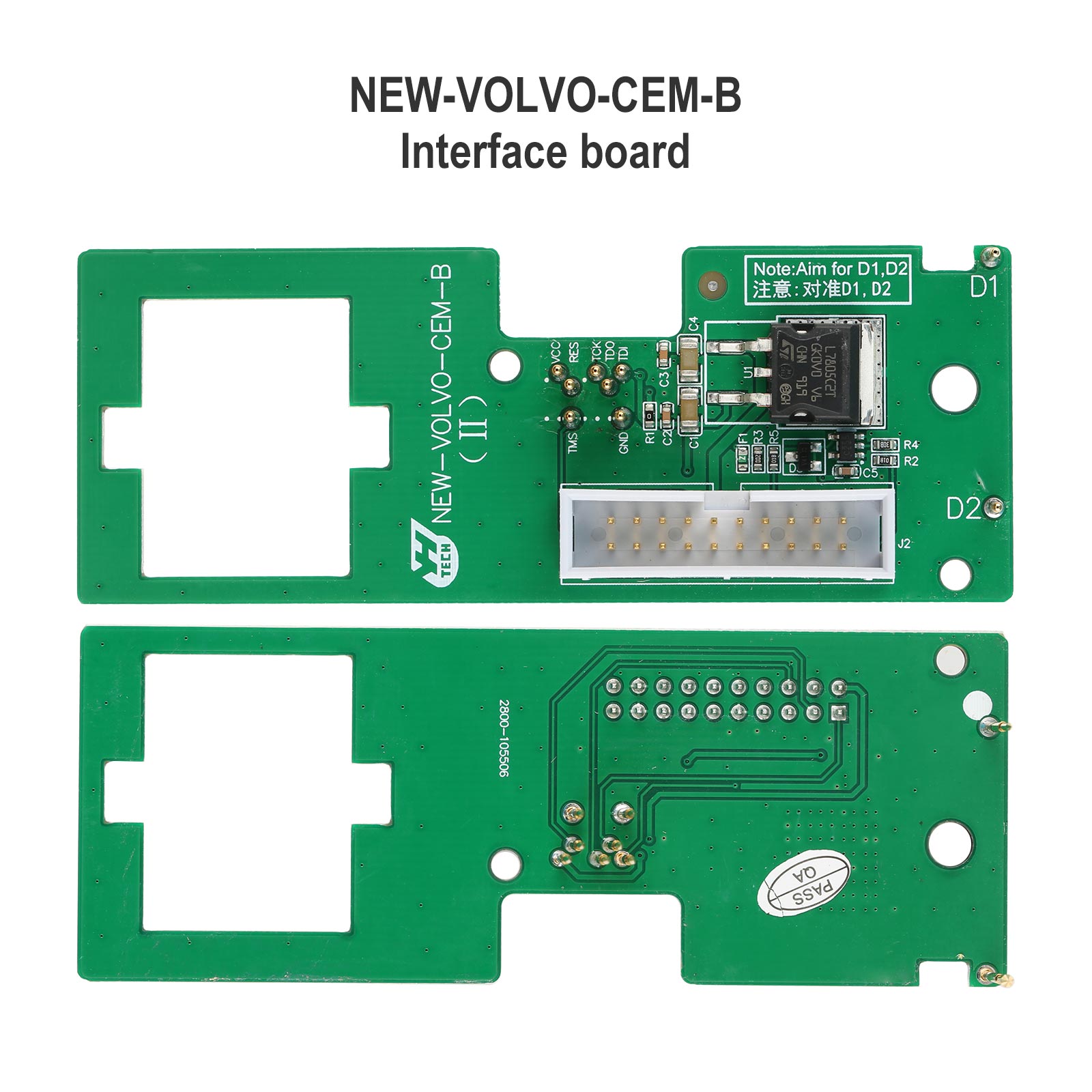

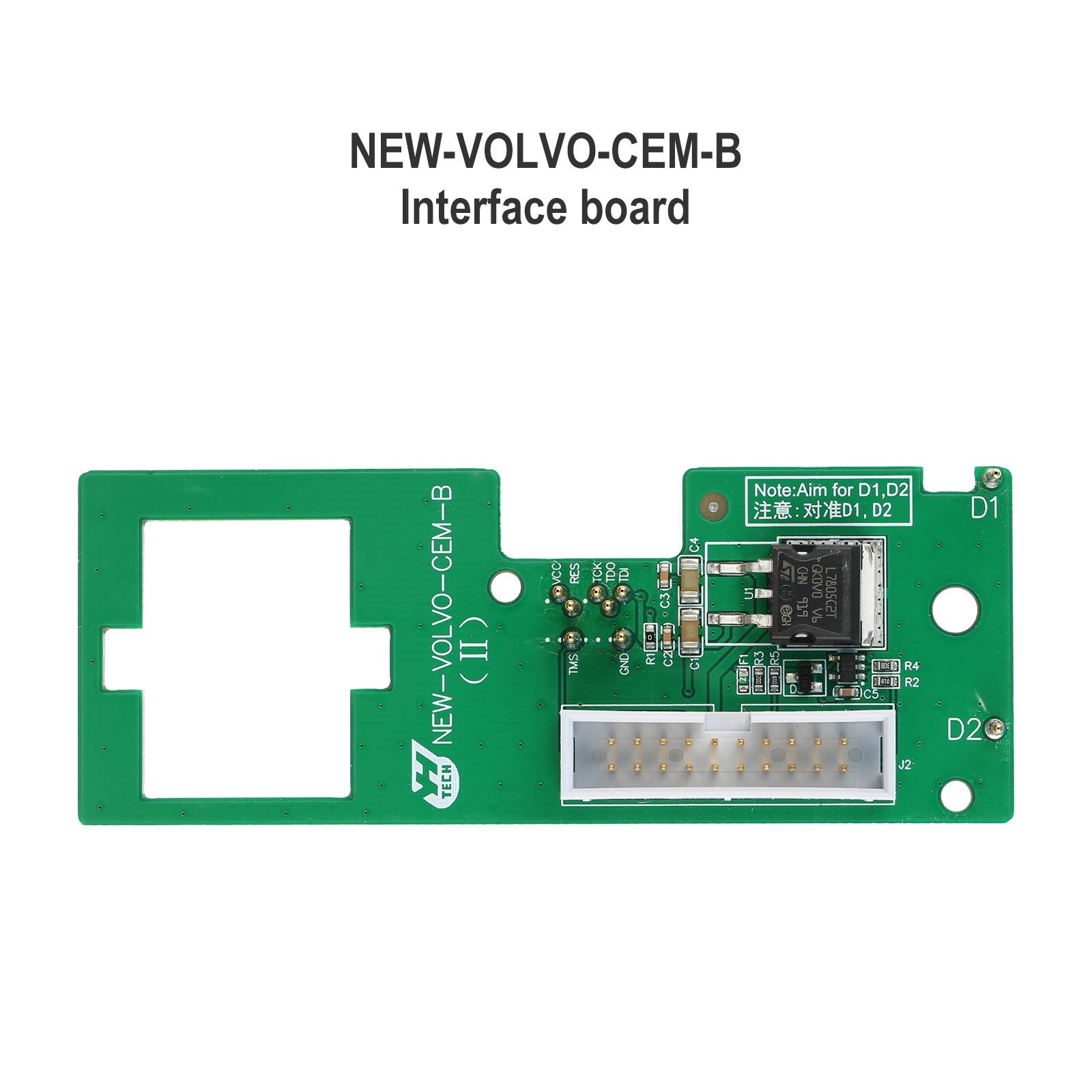

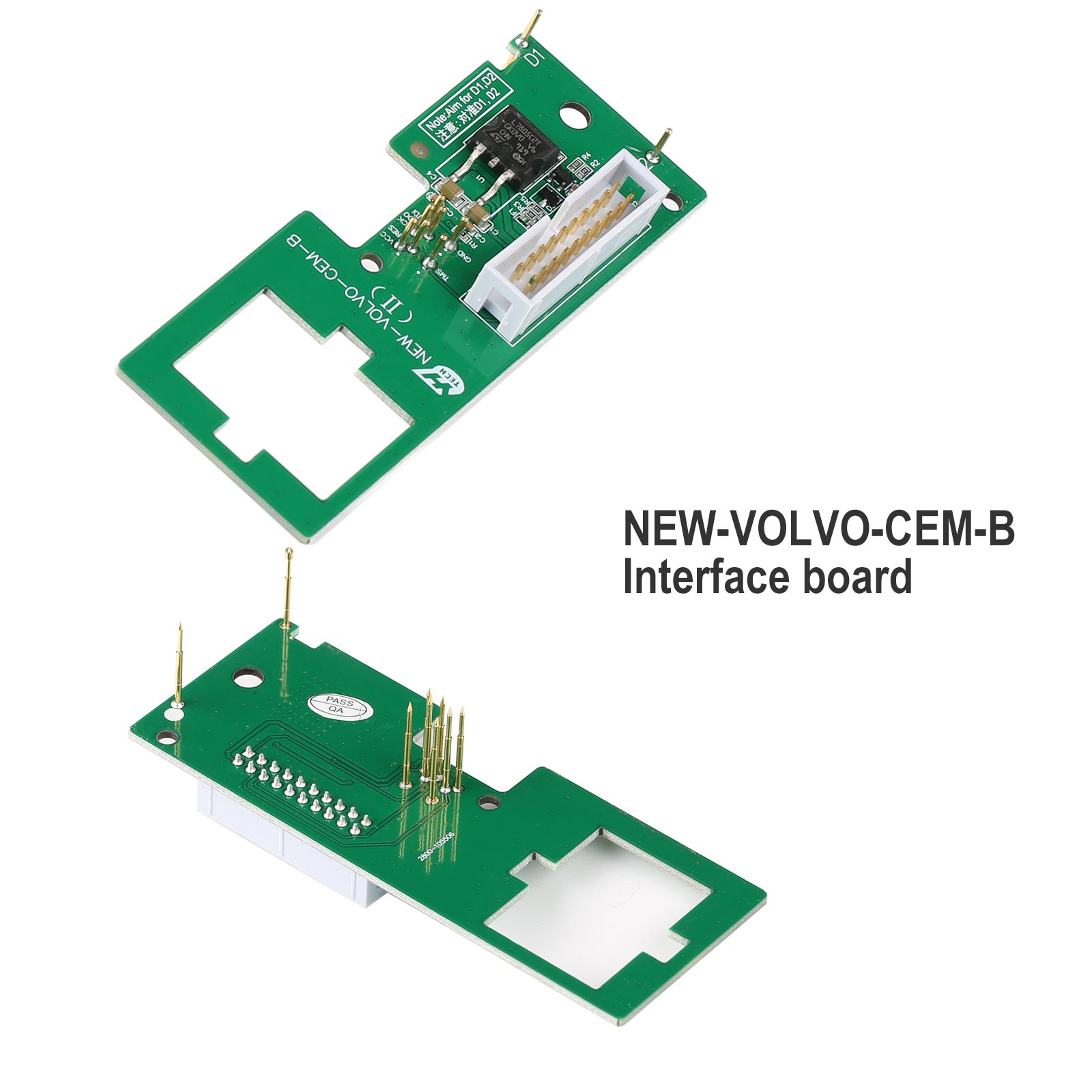

The special interface board connection replaces the traditional soldering ,Intelligent pin detection, safe and reliable.
Supported vehicle models:
VOLVO XC40（2020-），VOLVO XC60（2018-），VOLVO XC90（2015-）
VOLVO S60（2020-）, VOLVO S90（2017-）
VOLVO V60（2018-）, VOLVO V90（2016-）
Lynk&Co（2018-）

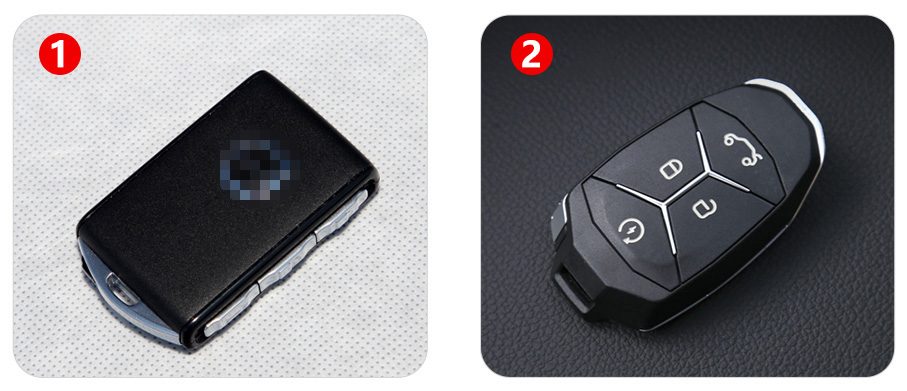

Supported key types：
CEM connection diagram：

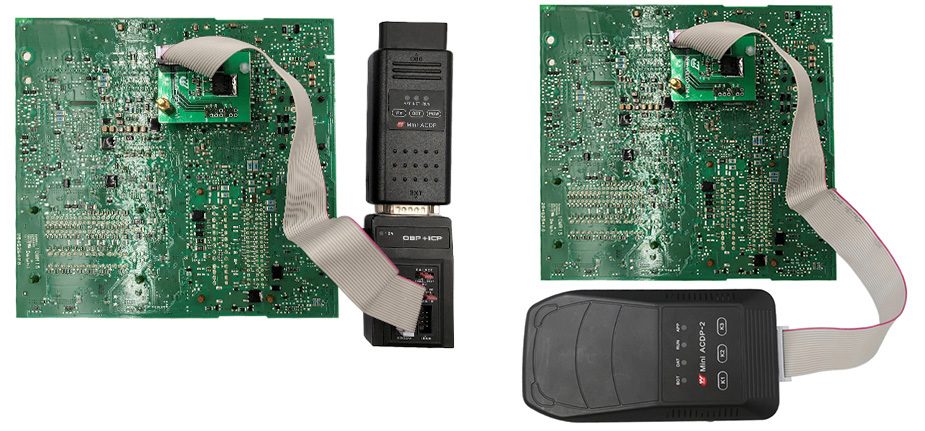

SPC5646C ▼

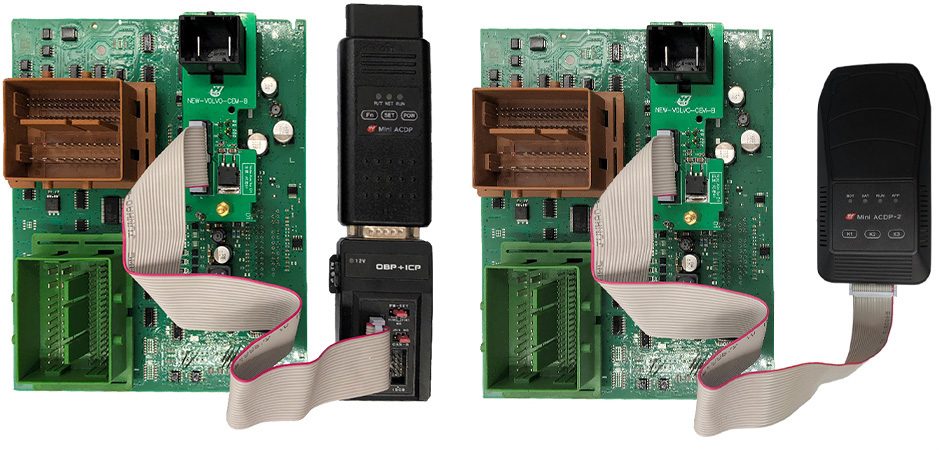

SPC5747g/ SPC5648G ▼
Pin intelligent detection：
Programming key area：

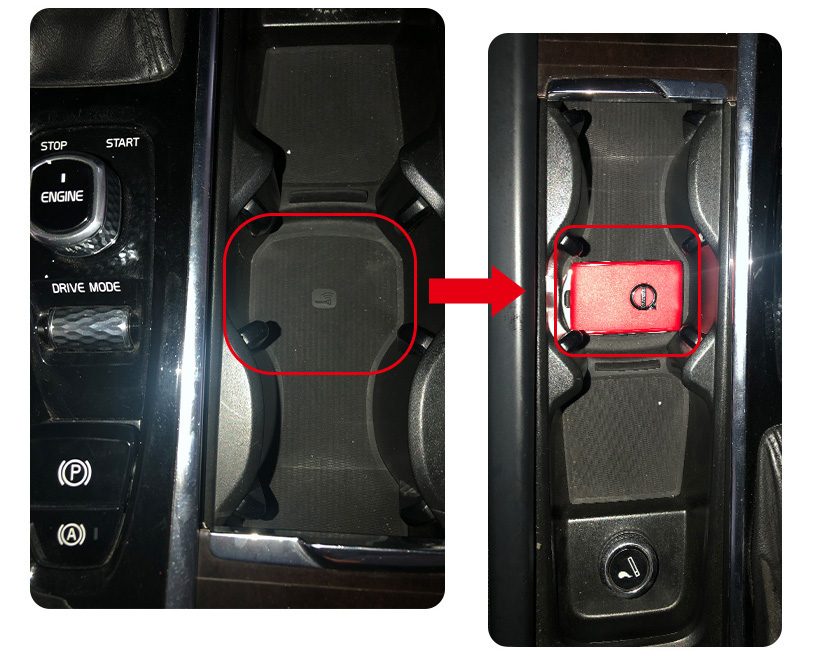

VOLVO ▼

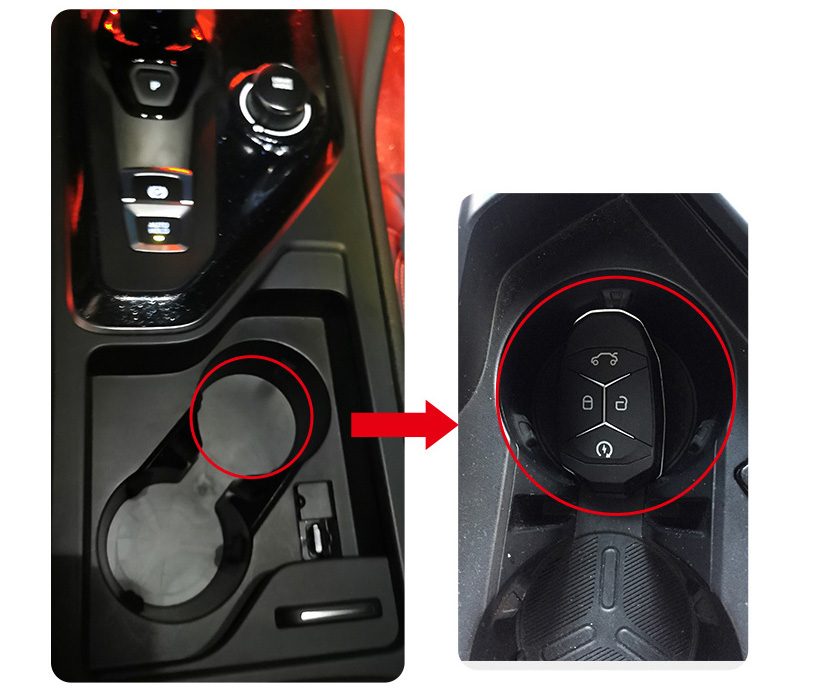

LYNK & CO ▼

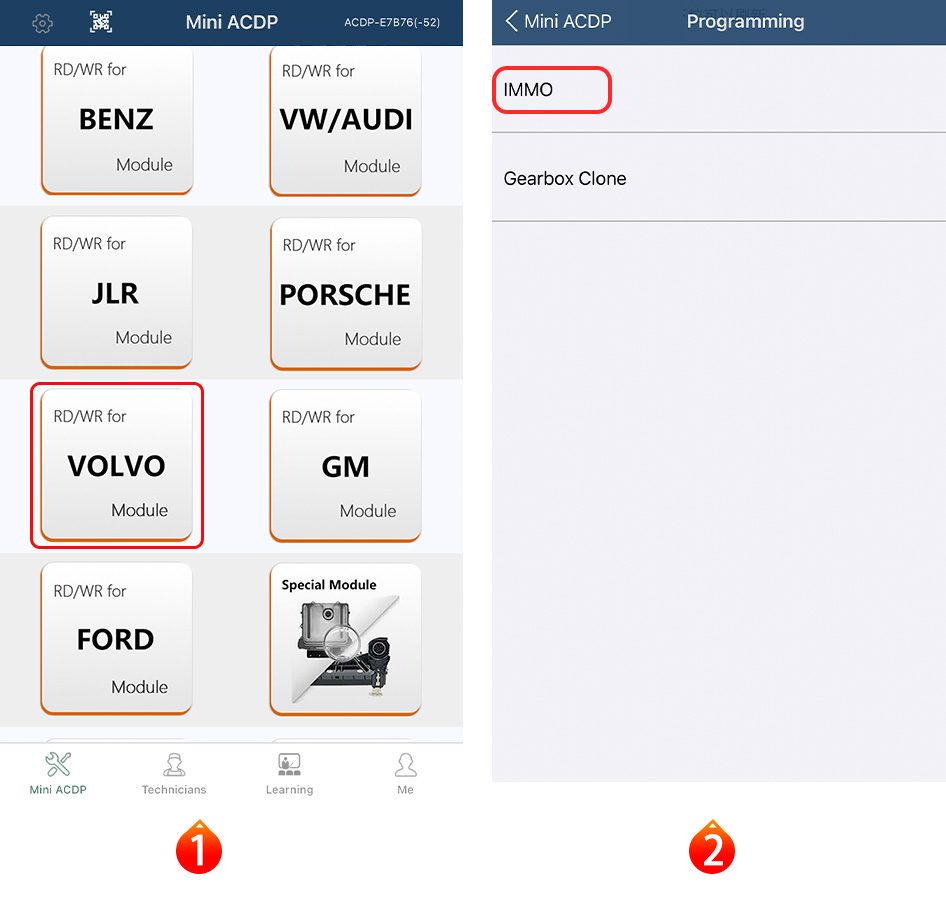

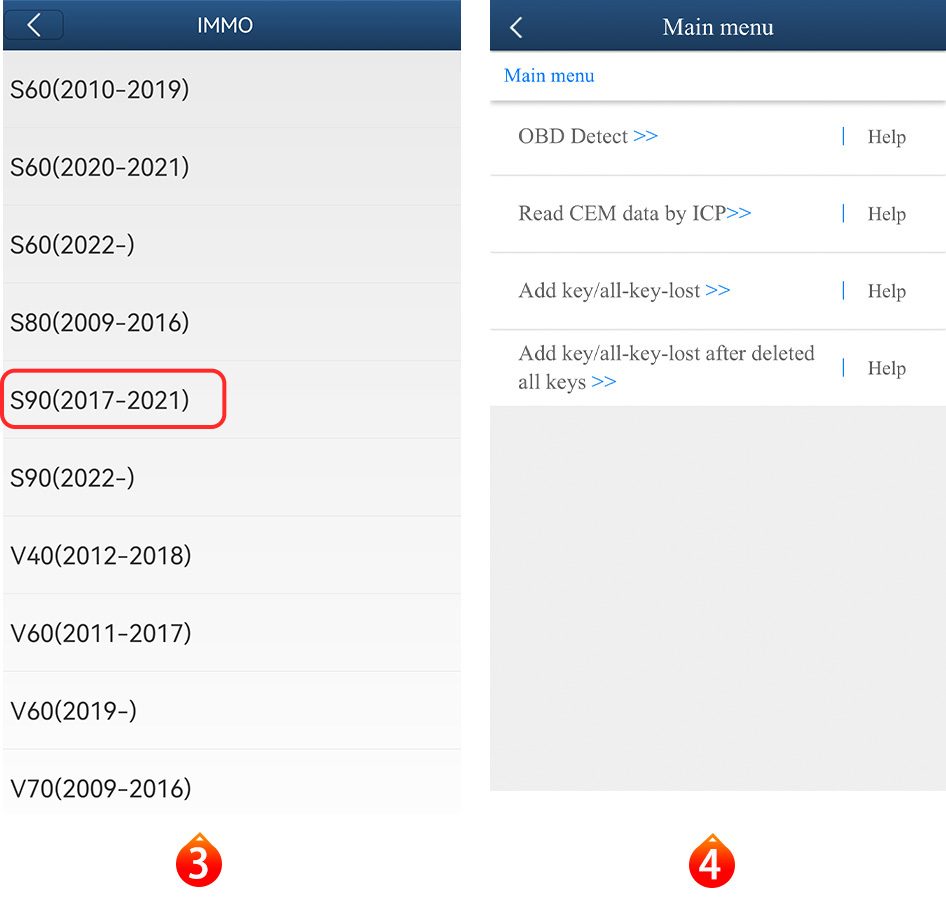

APP Operation Interface：

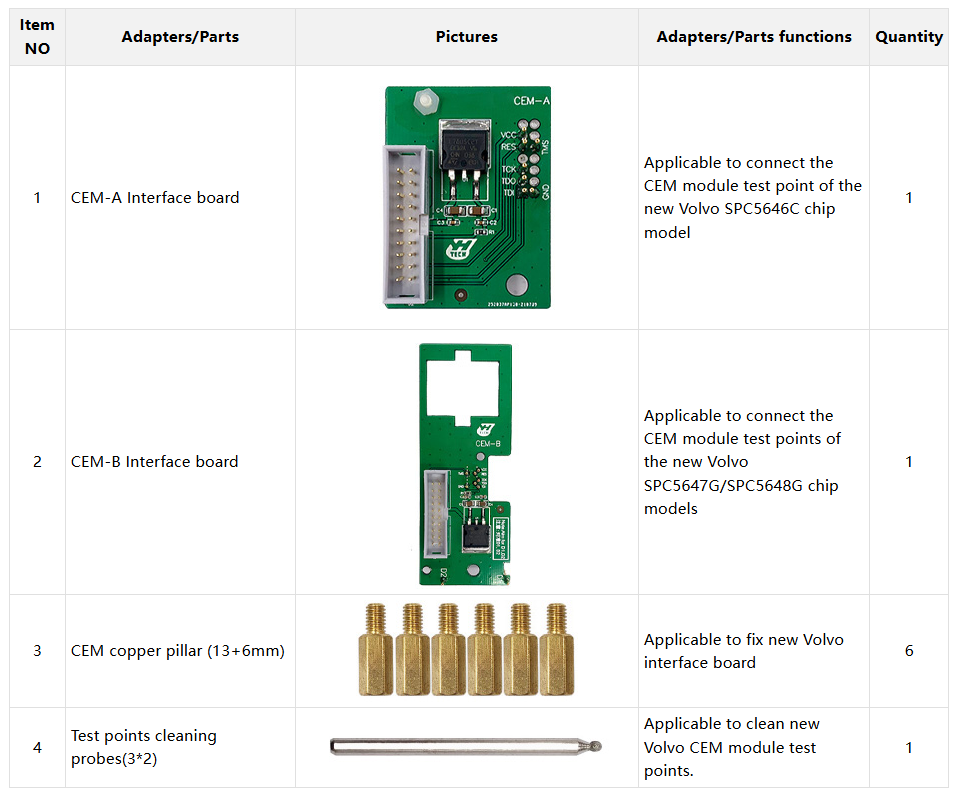

Configuration List:
What does this mean in the workshop?
The immobiliser checks whether a key belongs to the vehicle. Adding a key, handling stored data and preparing a replacement controller are different tasks. Confirm the particular operation you need rather than relying on the IMMO label alone.
Application scope
- Work on keys and supported immobiliser systems.
Technical overview
| Offer type | module |
|---|---|
| System / configuration | 20 - Volvo CEM |
| ACDP platform | ACDP-1 / ACDP-2 |
| Systems listed in documentation | Volvo CEM |
| Vehicle brands | Volvo |
| Modules in this configuration | 20 |
| Licence identifiers in this configuration | A302 |
| Connection method | OBD / ICP |
Before ordering
This is an ACDP expansion, not the base programmer. Operation requires a compatible host, the appropriate interface and an activated licence for the selected function. We check your existing equipment and the additions required before ordering.
Compatibility review
Send the vehicle model and year, ECU, TCU or IMMO identifier, required function and the serial number of your existing ACDP unit. Support depends on the specific controller, hardware and activated authorisations; the vehicle brand alone does not establish compatibility.
Request a quotation and compatibility check
Official Yanhua resources
For qualified professionals working with the vehicle owner’s authorisation. Retain original data and a service record. Work on security and memory systems should follow the official documentation for the exact controller.
