OBDStar KeyMaster G3 alat za programiranje ključeva i dijagnostiku

Podržane vrste vozila

• Car
• HD
• E-Car
• MOTO
• Marine / jet-ski

Software funkcije

• Programming IMMO keys.
• Remote Test, RFID and R/W transponder workflow.
• Make dealer keys, make start keys, renew key and unlock smart key.
• R/W EEPROM/MCU, Unlock ECU, ECU Advanced and OBD II functions.

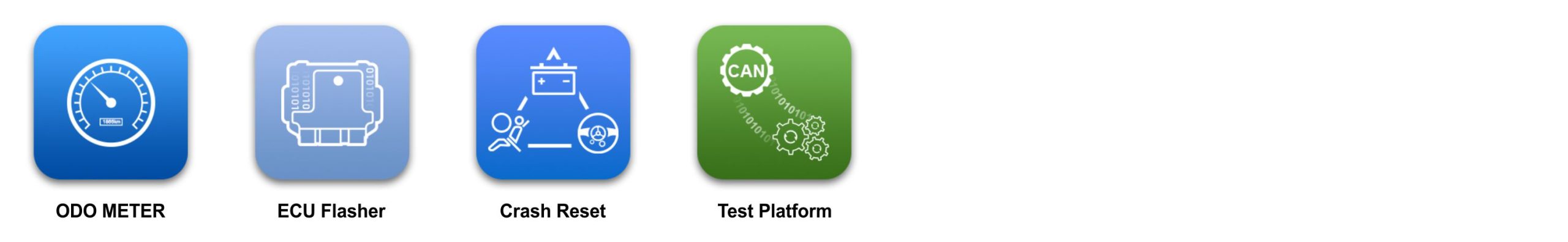

• Optional paid activations for ODO Meter, ECU Flasher, Crash Reset, Test Platform and other functions.

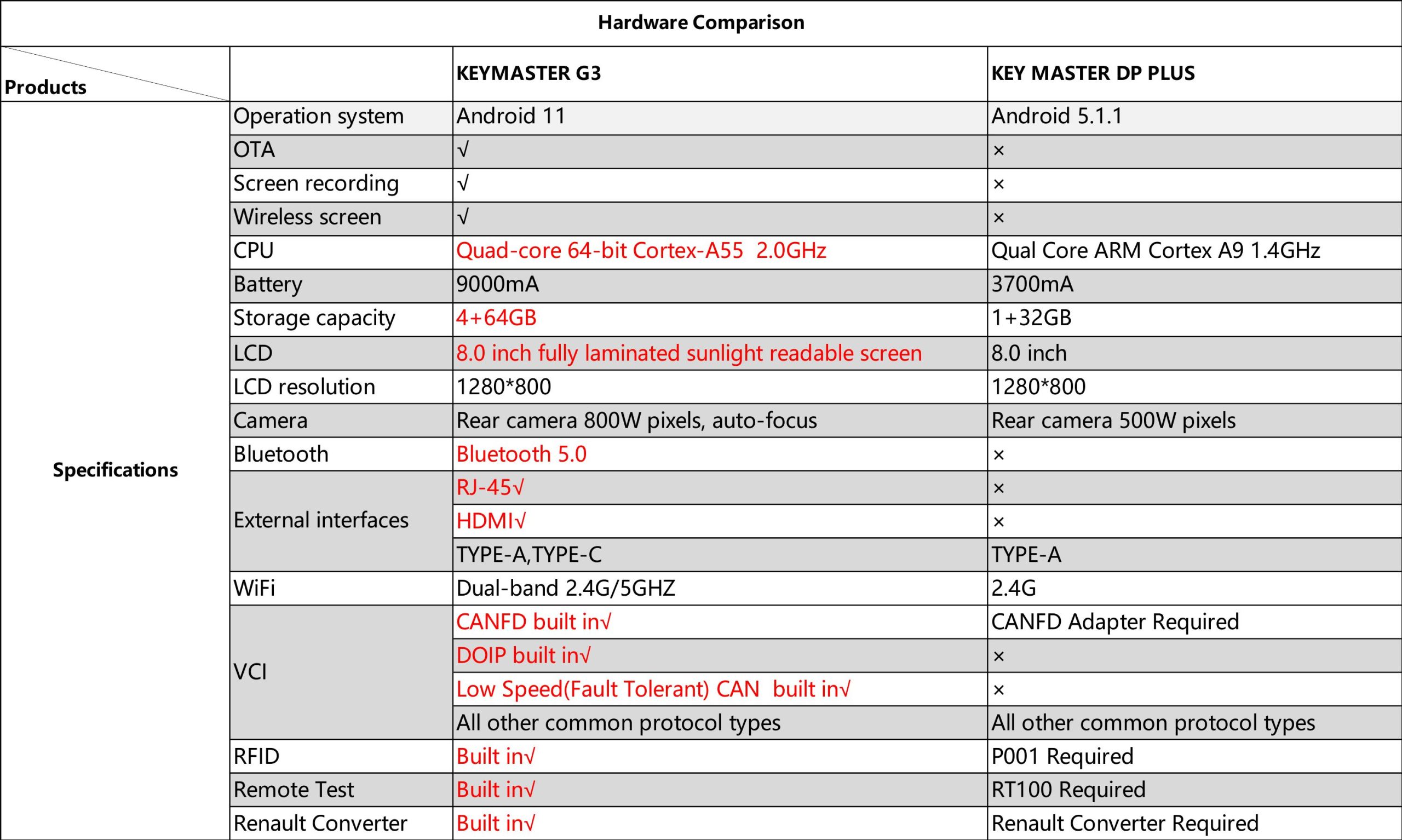

Hardverske prednosti

• Built-in CAN-FD, low-speed/fault-tolerant CAN, OBD16 pinout switch, DOIP, Remote Test and RFID.
• Quad-core 64-bit Cortex-A55 2.0 GHz platform with 4 GB + 64 GB storage.
• High-brightness display, HDMI high-definition interface, dual-band 2.4/5 GHz Wi-Fi and Bluetooth 5.0.

Napredne funkcije

• MQB all keys lost, including proximity AKL and blade AKL, with unlimited synchronization code calculation according to OBDSTAR.
• FORD/LINCOLN 2021+ key programming examples.
• NISSAN SENTRA B18 and ROGUE T33 all keys lost examples.

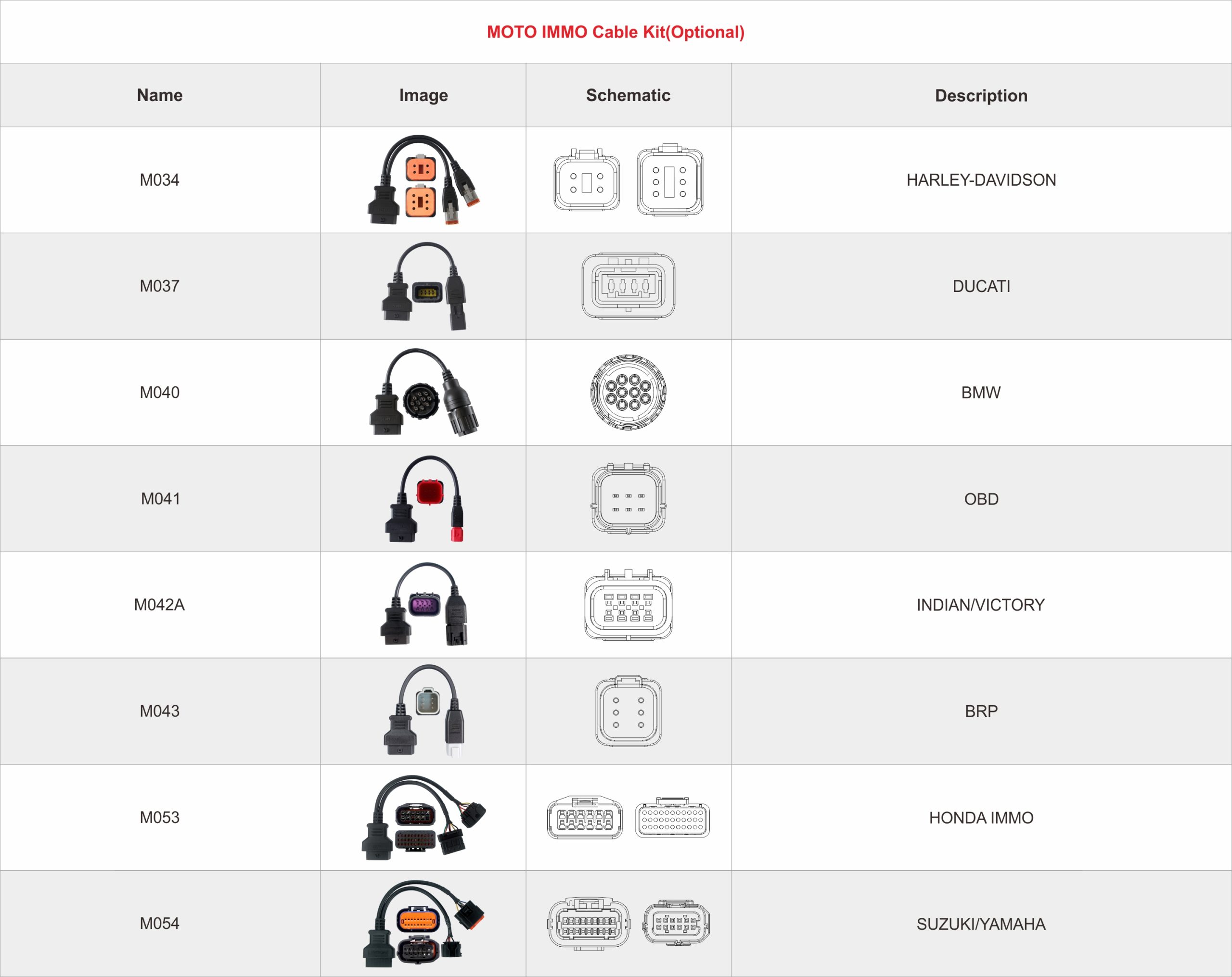

• Moto key programming without pincode for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, APRILIA, PIAGGIO, VESPA and others.
• Marine key programming for BRP, KAWASAKI, YAMAHA and others.
• E-Car key programming for LI, NETA, LEAPMOTOR, SERES, AITO and others.
• Unlock ECU functions for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others.
• SMART 453 and selected RENAULT all-keys-lost disabled-functions solutions.
• Renault post-2015 pincode reading examples with no-brick workflow noted by OBDSTAR.

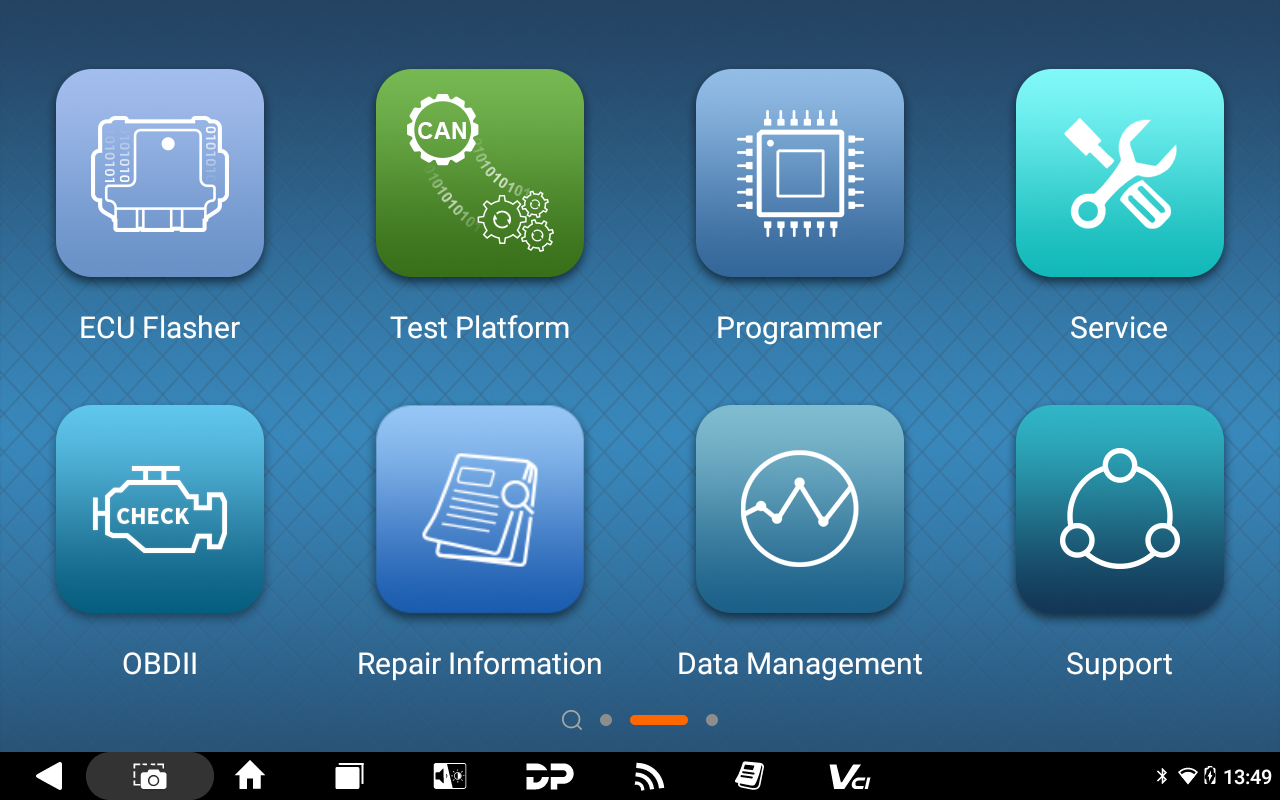

Function Module List

• A IMMO: CAR IMMO, HD IMMO, E-CAR IMMO, MOTO IMMO, MARINE IMMO, Remote Test, ECU Advanced, Make Key, R/W Transponder, Unlock Smart Key, EEPROM/MCU and Renew Key.
• B ODO METER: CAR ODO METER, MOTO ODO METER and Oil/Service Reset.
• C ECU Flasher: CAR ECM, CAR TCM, CAR BODY and MOTO ECM.
• D Crash Reset: Battery Reset/MVBM, Airbag Reset and SAS Reset.
• E Test Platform: Dashboard, E-CAR ABS, Gear Lever, A/C Panel, E-CAR BSG, E-CAR MHEV, E-CAR Audio and E-CAR EBA.

Operating platform

• Android-based professional diagnostic/key programming platform.
• Quad-core 64-bit Cortex-A55 2.0 GHz.
• 4 GB + 64 GB storage.

Communication

• CAN-FD.
• Low Speed / Fault Tolerant CAN.
• DOIP.
• OBD16 pinout switch.
• Remote Test and RFID.

Connectivity

• Dual-band 2.4/5 GHz Wi-Fi.
• Bluetooth 5.0.
• HDMI high-definition interface.

Application

• IMMO and key programming.
• EEPROM/MCU operations.
• ECU Advanced and optional ECU Flasher.
• Crash Reset and Test Platform functions depending on activation.

Kako provjeriti kompatibilnost?

Pošaljite VIN, godinu vozila, model, vrstu ključa/modula i funkciju koju želite raditi. Provjerit ćemo realnu podršku prije narudžbe.

Aktivacije / Activations

ODO Meter, ECU Flasher, Crash Reset, Test Platform and other modules can depend on purchased activation and current OBDSTAR package policy.

Službeni izvor / Official source

OBDSTAR KeyMaster G3 official page
