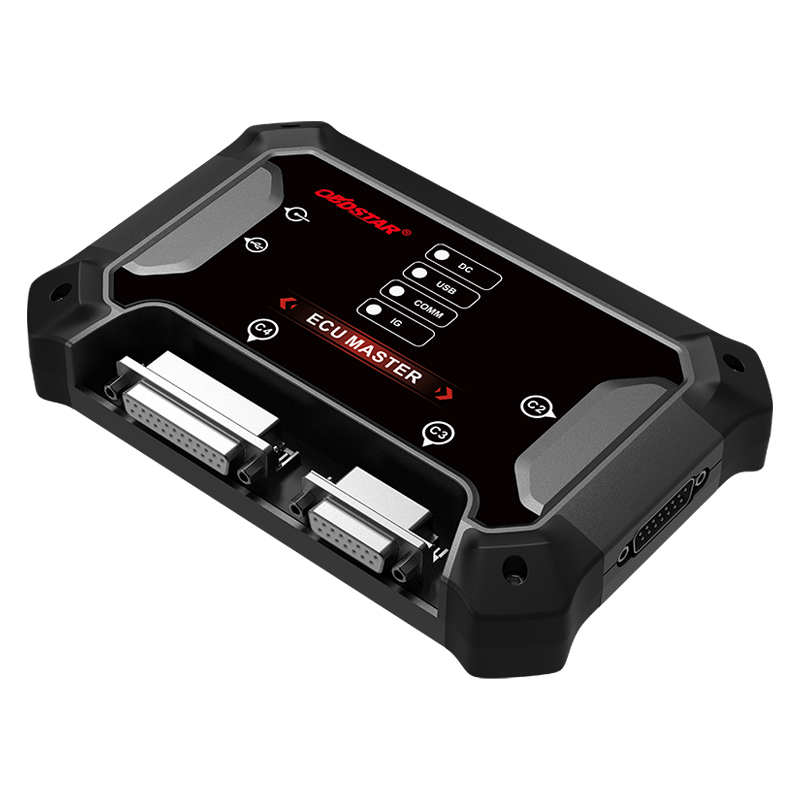

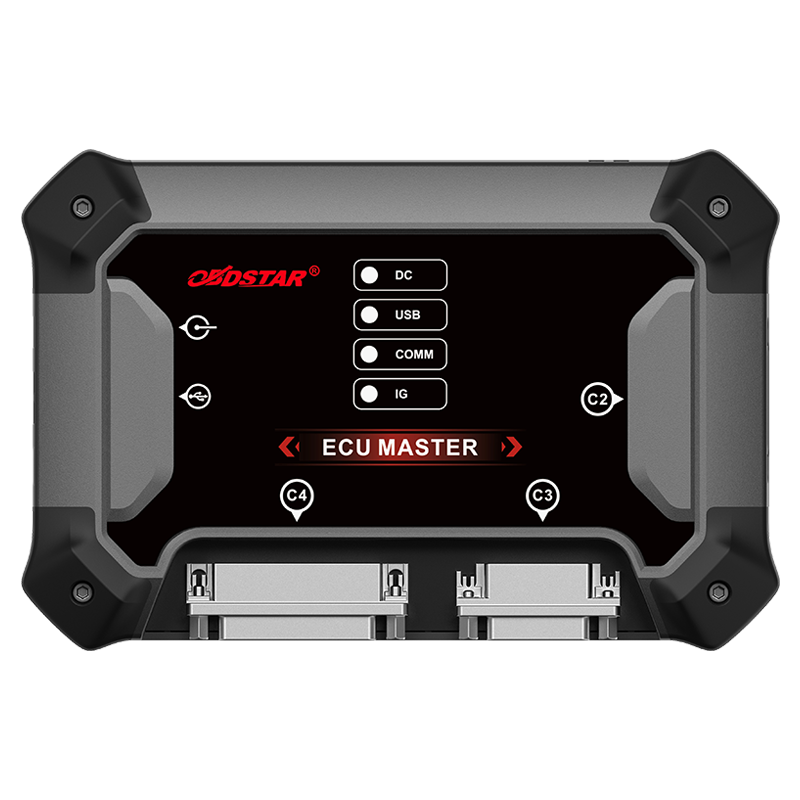

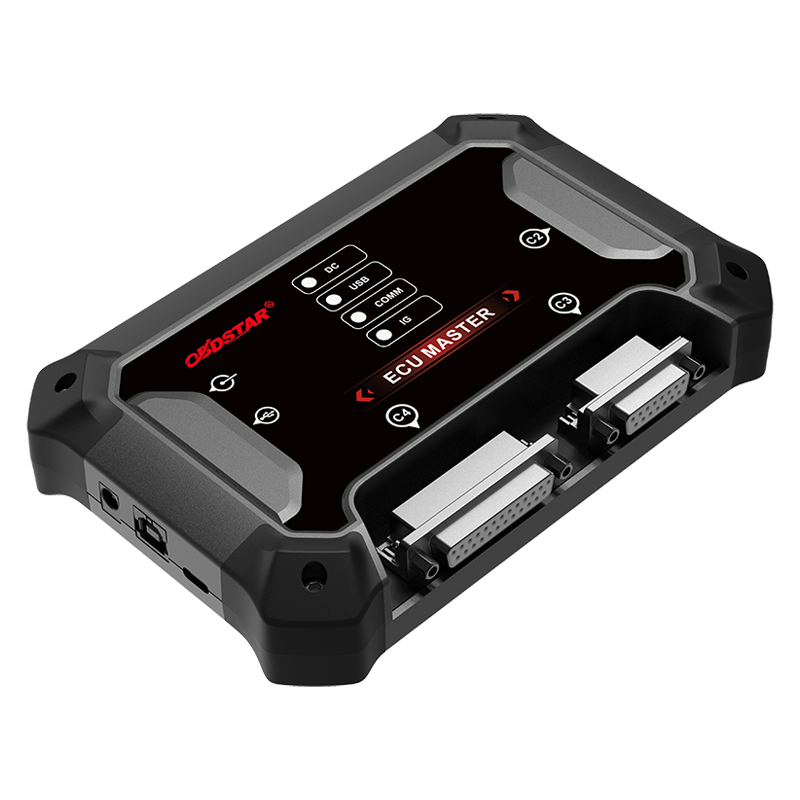

OBDSTAR ECU MASTER
OBDSTAR ECU MASTER je profesionalni PC-based ECU flasher za radionice koje rade čitanje, pisanje, kloniranje i napredne servisne postupke na ECM, TCM, BCM, BMS/VCU i drugim elektroničkim modulima. Prema službenoj OBDSTAR stranici, alat pokriva osobna vozila, EV module, motocikle, heavy-duty program i off-highway strojeve.
Car Diag je ovlašteni distributer za OBDSTAR i preporučuje provjeru kompatibilnosti prije narudžbe: VIN, godina, oznaka modula, fotografija naljepnice ECU/TCU/BCM jedinice i funkcija koju želite raditi.
Podržane funkcije
Osobna vozila ECM / TCM / BCM
- ECM / TCM / BCM read, write and cloning workflow.
- BOSCH MED/EDC17, CONTINENTAL SIMOS, GPEC, DELPHI, DSG TCM, MB FBS4 and similar supported platforms.
- CheckSum, IMMO data convert/decryption, IMMO OFF/ON, coolant temperature calibration, mileage calibration, ECU runtime calibration, VIN read/write and Virgin Reset depending on module/license.
HD program ECM / TCM / BCM
- Truck brands: MERCEDES-BENZ, VOLVO, SCANIA, MAN, IVECO, ISUZU, MITSUBISHI FUSO, FAW, FORD and others.
- Tractor/OHW: JOHN DEERE, CNH INDUSTRIAL, KUBOTA, YANMAR and other machinery platforms.
- HD ECU suppliers: BOSCH, DENSO, CONTINENTAL, DELPHI, SIEMENS, CUMMINS, WABCO, ZF and others.
- VIN read/write, Virgin Reset, Mileage Calibration, CheckSum, MAPS read/write, ECU lock/unlock and IMMO OFF/ON depending on supported module.
Motocikli ECM
- Officially listed support for 100+ motorcycle brands and 300+ ECU types.
- VIN read/write, data read/write, ISN read/write, Virgin Reset, data buffer reset, mileage calibration and CheckSum depending on ECU type.
Službeno navedeni primjeri podrške
Osobna vozila ECM / TCM / BCM
- Mercedes-Benz FBS3/FBS4 TCM VIN read/write via BENCH, Virgin Reset and personalization/data transfer.
- AISIN SH7058, SH7055, D70F4019 and R7F701204 TCM cloning.
- BMW 8HP GEN3 TC275/TC277 TCM cloning via BENCH.
- Jaguar/Land Rover 8HP GEN3 TC275 and 9HP50 TC275 TCM cloning with VIN read/write via BENCH.
- HYUNDAI/KIA CAN FD KEFICO CPSCU1.11.3 TC233 SBW/ETCM cloning.
- FORD MG1/MD1 GEN2 CAN FD ECU read/write via OBD/BENCH for supported 2020+ locking types.
- VW SIMOS, ME17 and EDC17 internal EEPROM data transfer/ECU cloning.
- MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF and 11MP cloning via BENCH.
- BMS/VCU BENCH cloning examples: GEELY/GREATWALL VCU, SAIC VCU, BYD YANGWANG VCU and AUDI/VW/SEAT/SKODA/GEELY BMS platforms listed by OBDSTAR.
- CHINA DELPHI MT flash/EEPROM read/write and VIN read/write.
- FIAT/ALFA ROMEO/FERRARI MB91F526 BSI cloning and IMMO data decryption examples.
HD program ECM / TCM / BCM
- Mercedes-Benz PLD/MR series cloning via BENCH/BOOT.
- Mercedes-Benz ACM2, ACM2.1 and ACM2.2 cloning via BENCH.
- Mercedes-Benz ADM2 and ADM3 cloning via BENCH.
- Mercedes-Benz MCM2/MCM2.1 cloning via BENCH/BOOT with ECU lock/unlock and VIN read/write.
- Mercedes-Benz CPC/FR, CPC3, CPC4 and CPC5 cloning via BENCH.
- Mercedes-Benz BOSCH, FESTO and WABCO MP4 TCM read/write and cloning via BENCH.
- Mercedes-Benz EBS4, EBS4+ and EBS5 cloning via BENCH.
- MAN FFR, PTM, EDC7C3 and EDC7C32 cloning via BENCH/JTAG/BDM.
- SCANIA EMS S6/S7/S8, EMD1, EGC4, EEC3, COO7, COO8 and OPC5 cloning via BENCH/JTAG.
- Mercedes-Benz/DAF/IVECO/HYUNDAI/MAN GS3.0, GS3.3 and GS3.6 TCM cloning via BENCH/BOOT.
- VOLVO EMS2.2, EMS2.3 and EMS2.4 cloning via BENCH.
- CUMMINS CM1880A, CM1881, CM2150E, CM2220A, CM2350A, CM2150C, CM2220C, CM2880, CM871, CM2220B and CM2200A VIN read/write via BENCH.
Motocikli ECM
- HARLEY-DAVIDSON CAN 2-pin, CAN 3-pin and HD J1850 data read/write via BENCH with VIN read.
- HARLEY-DAVIDSON MT21 data read/write via BENCH with VIN read and mileage calibration.
- HONDA KEIHIN M32R, SH705X, MPC560 and RH850 read/write via BENCH.
- CFMOTO MSE6.0, MSE8.0, MSE9.0, US6.0 and ME17/MED17.8.10 ECU cloning via BENCH.
- KAWASAKI DENSO series read/write via BENCH for supported 21175-XXX series modules.
Ključne prednosti
- Comprehensive protocol and mode coverage: OBD, BENCH, BOOT, JTAG and BDM.
- All-in-one functional coverage for ECM/TCM/BCM read/write, cloning, CheckSum, Virgin Reset, immobilizer data operations, VIN modification and mileage correction.
- Clear PC-based workflow with documentation and anti-misoperation reminders.
- Targeted solutions for Ford/Volvo BCM cloning, VW/Audi IMMO data decryption, DSG TCM programming/calibration and Mercedes-Benz FBS4 used-unit adaptation.
- Monthly manufacturer update rhythm according to OBDSTAR's product presentation.
- Professional after-sales workflow through Car Diag with compatibility check and technical guidance before purchase.
Konfiguracije i cijene
Dealer price je spremljen kao interna ulazna cijena u admin dijelu i nije prikazan kupcima. Javno se prikazuje prodajna cijena i pretplata/update gdje je primjenjivo.
| Configuration | Price | Subscription / update |
|---|---|---|
| A (passenger cars) | 1.399,00 EUR | 249 |
| B (Motorcycles) | 768,00 EUR | 149 |
| C (Trucks) | 1.980,00 EUR | 299 |
| A&B | 1.986,00 EUR | 344 |
| A&C | 2.955,00 EUR | 511 |
| B&C | 2.325,00 EUR | 402 |
| FULL (A+B+C) | 3.488,00 EUR | 500 |
Specifikacije
| Operation system | Windows 10 or above |
|---|---|
| CPU | STM32H723, STM32F407 |
| Working Voltage | DC 14 V |
| Working temperature | -10 °C to 55 °C / 14 °F to 131 °F |
| Storage temperature | -20 °C to 70 °C / -4 °F to 158 °F |
| Weight | About 0.7 kg |
| Dimension | 176 mm x 115 mm x 31.7 mm |
| Warranty | 1-year hardware warranty; software update duration follows the active package/manufacturer policy. |
Video proizvoda
OBDSTAR ECU MASTER - Unbox & First Look
Function Manual
Na službenoj OBDSTAR stranici dostupni su coverage paket i korisnički priručnik. Za najnoviju podršku uvijek provjeriti službenu coverage datoteku.

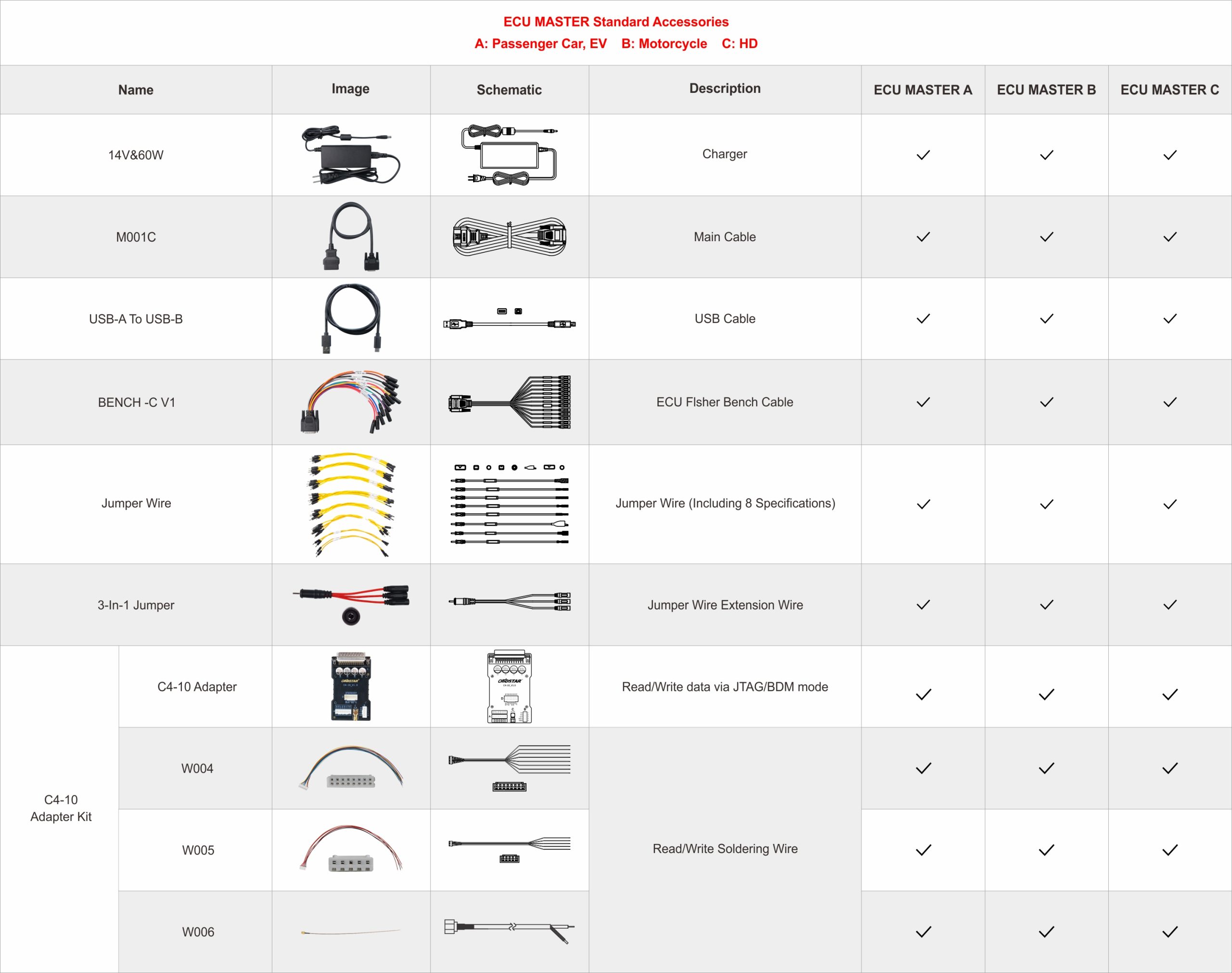

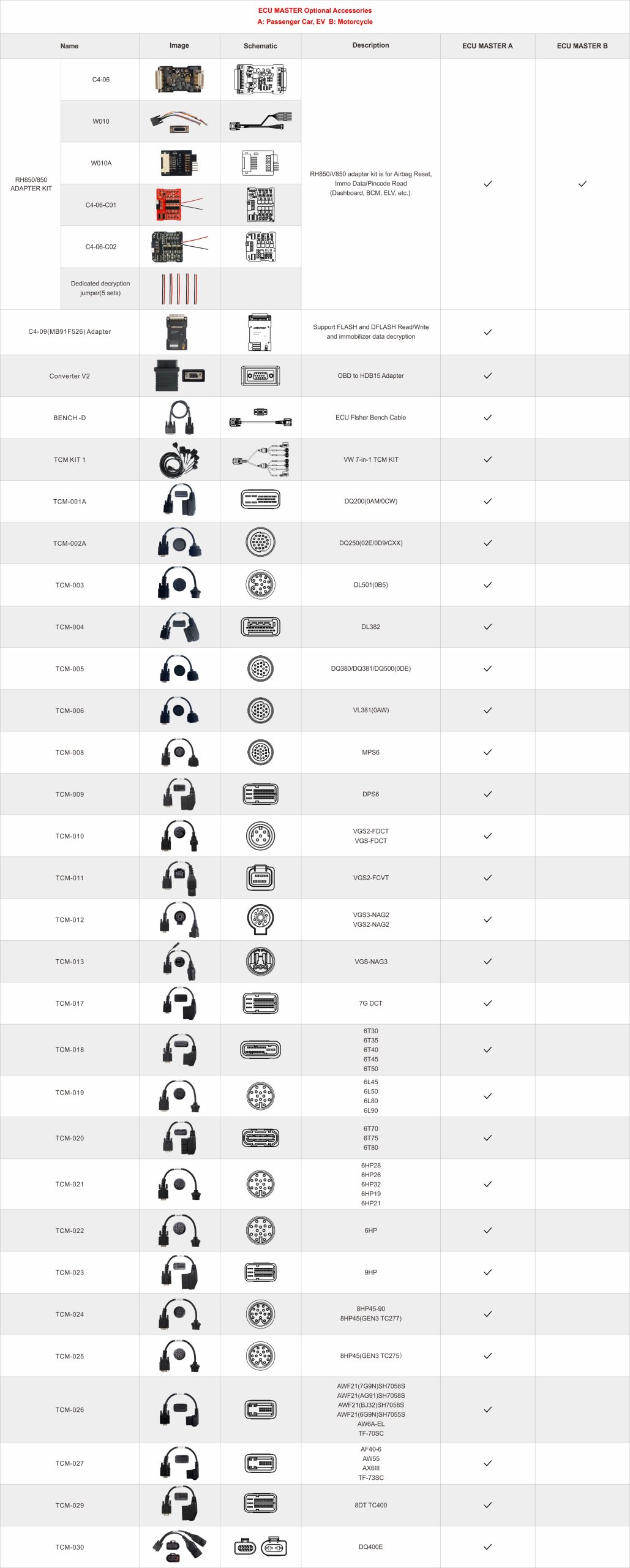

Accessories
Sadržaj paketa i opcionalna oprema mogu ovisiti o odabranoj konfiguraciji, licenci i aktualnoj isporuci proizvođača.
FAQ
Provjera kompatibilnosti prije kupnje
Pošaljite VIN, godinu vozila, oznaku modula i željenu funkciju. Provjerit ćemo realnu podršku prije narudžbe.
OBD / BENCH / BOOT / JTAG / BDM
Official OBDSTAR data lists these operating modes; exact availability depends on the module, license and current coverage file.
